LBX2500 RF Shield Box
Explore the LabiFix LBX2500 RF Shield Box. Features >85dB attenuation up to 6GHz, custom I/O filter panels, and ISO 9001 quality. Request a custom quote today.
Key Specifications & Performance
Verified laboratory measurements and mechanical dimensions for the LBX2500 series.
Technical Specifications & Performance Data
| Specification Parameter | Engineering Value & Details |
|---|---|
| Model Designation | LBX2500 High Isolation RF Enclosure |
| Frequency Range | 100 MHz – 12 GHz (Optionally up to 40 GHz for 5G mmWave) |
| Shielding Effectiveness | > 90 dB @ 2.4 GHz, > 85 dB @ 6 GHz, > 80 dB @ 12 GHz |
| Outer Dimensions (H x W x D) | 550 x 550 x 400 mm (21.6" x 21.6" x 15.7") |
| Inner Dimensions (H x W x D) | 480 x 480 x 330 mm (18.9" x 18.9" x 13.0") |

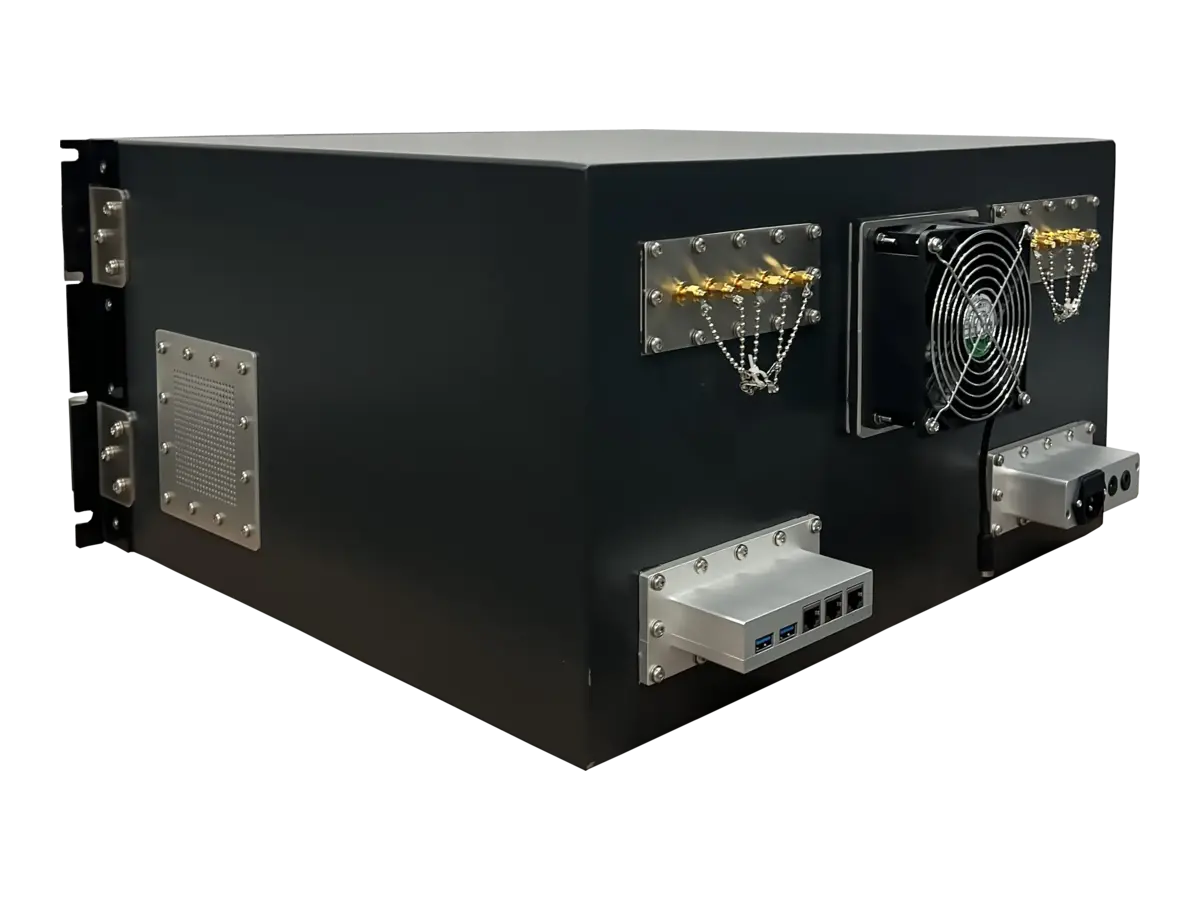

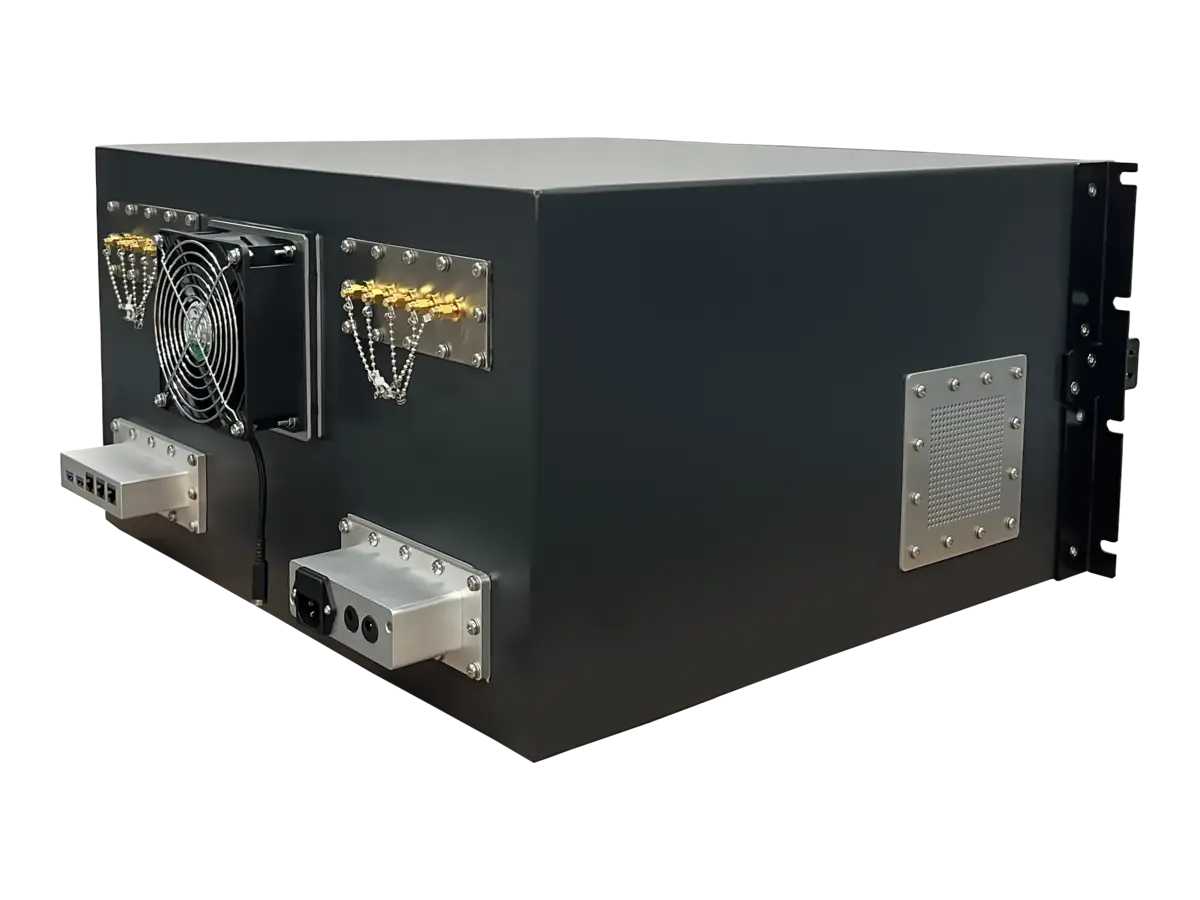

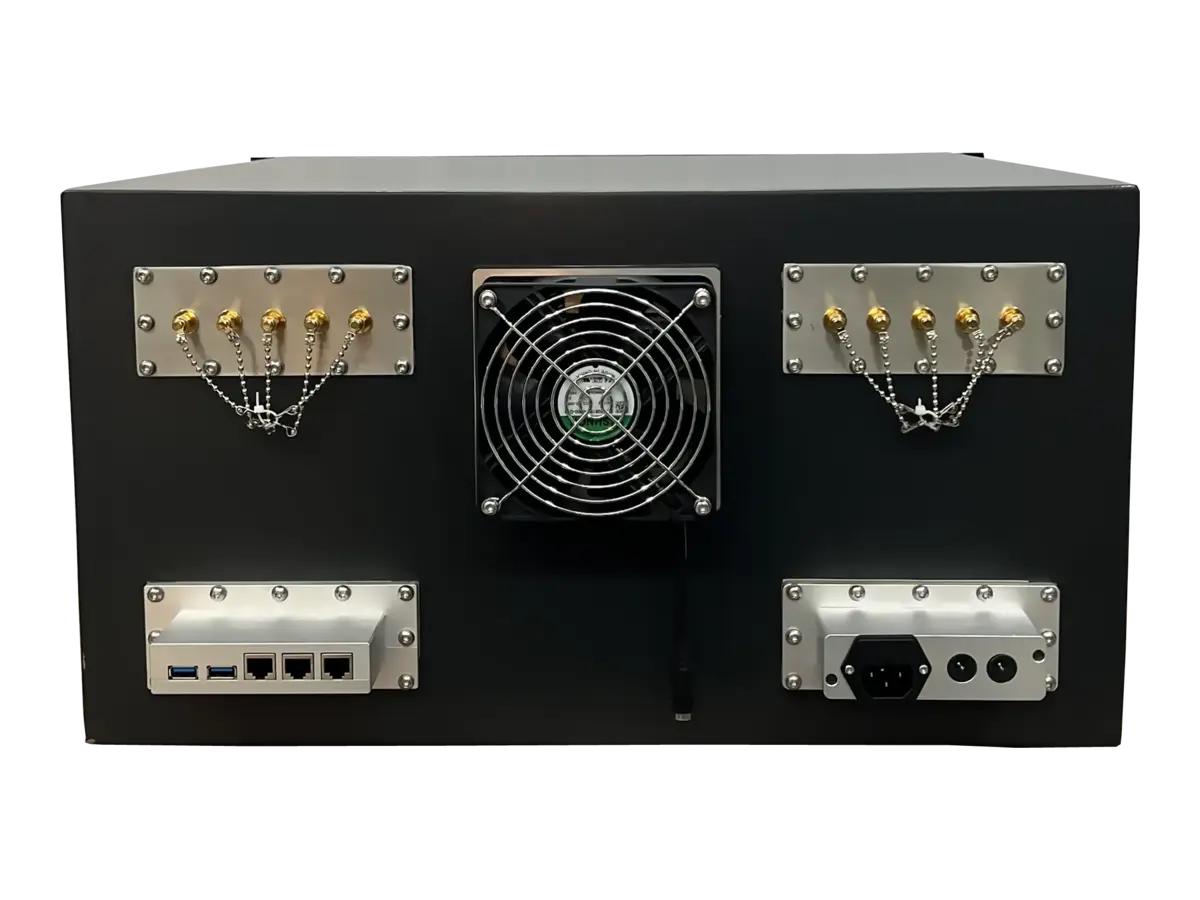

| I/O Connectors | SMA (x4), N-type (x2), Filtered USB 3.0 (x2), Filtered 1GbE RJ45 (x1), AC Power Filter |

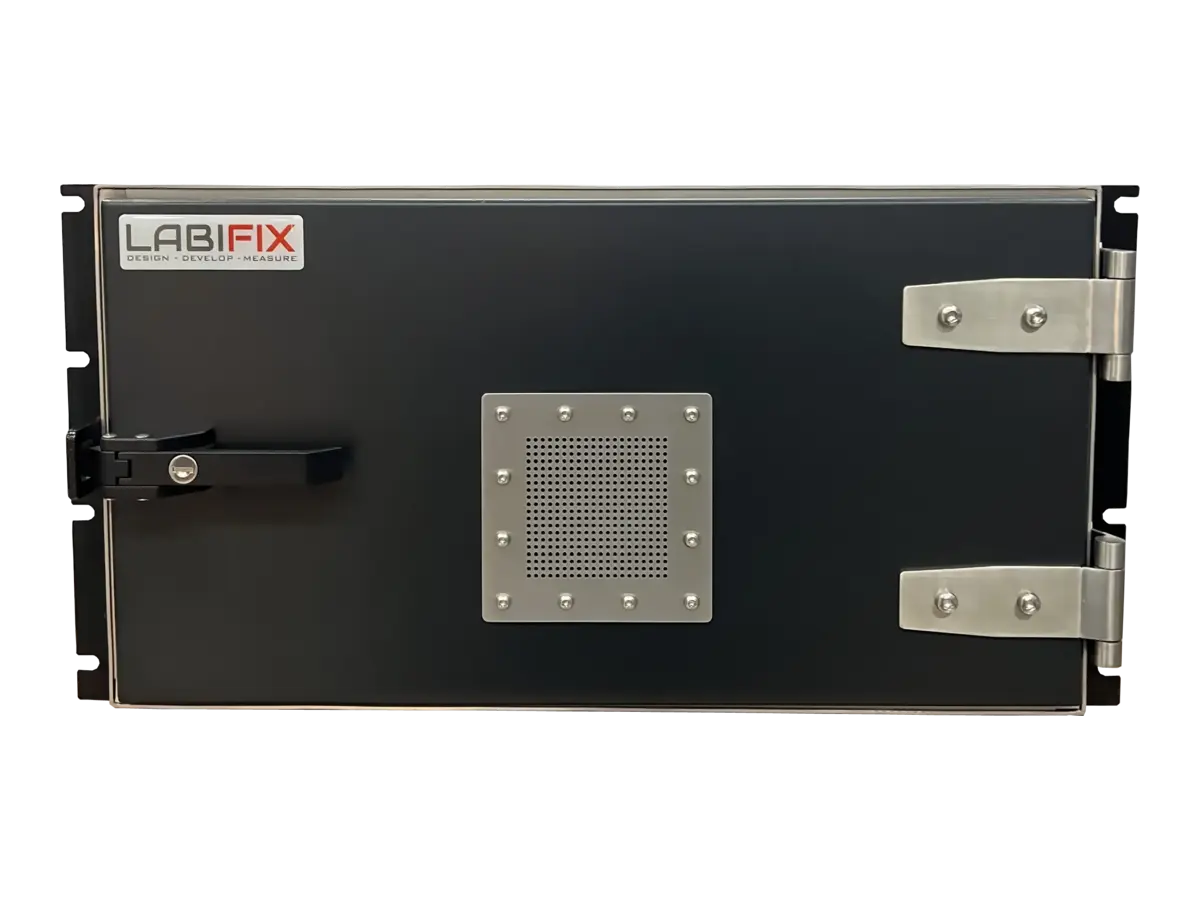

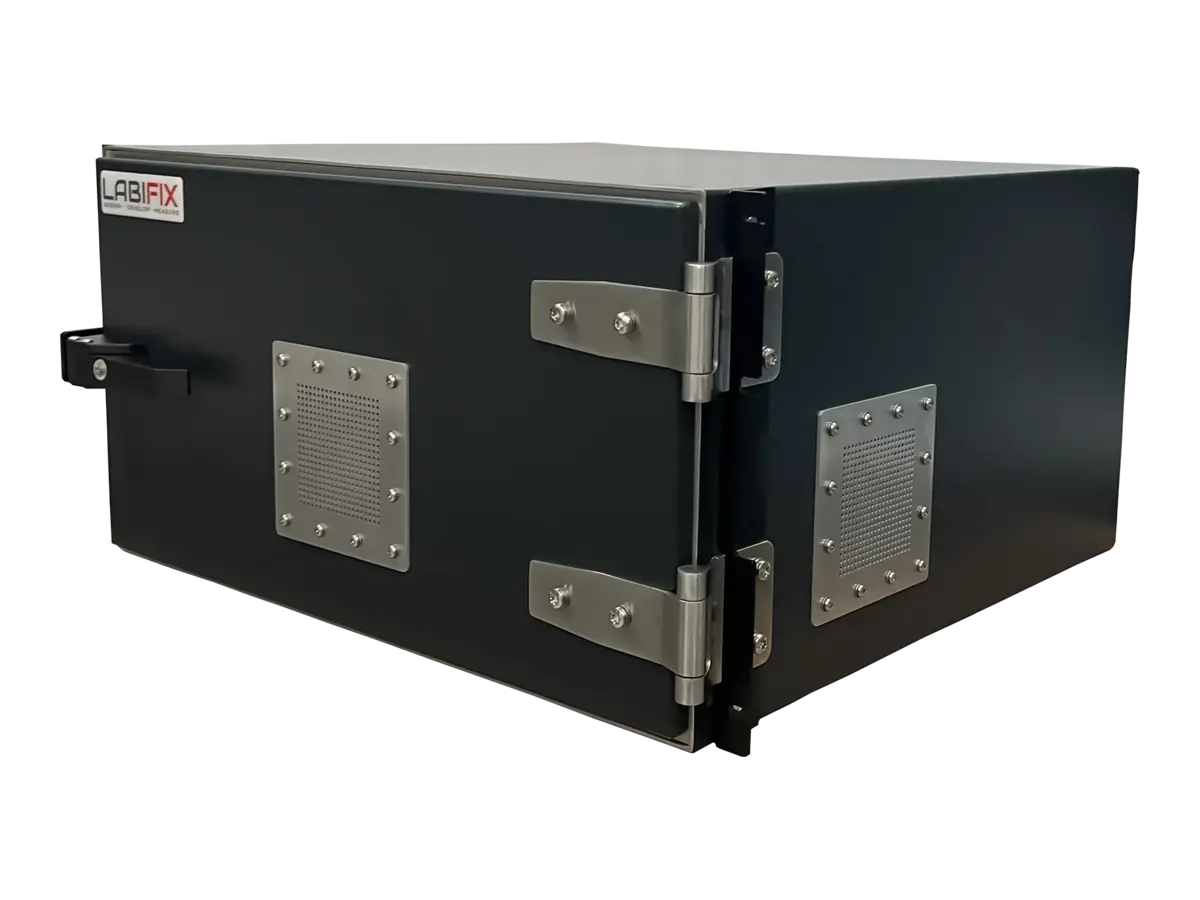

| Operation Mechanism | Heavy-duty Dual-Latch Toggle Clamp / Pneumatic Actuator |

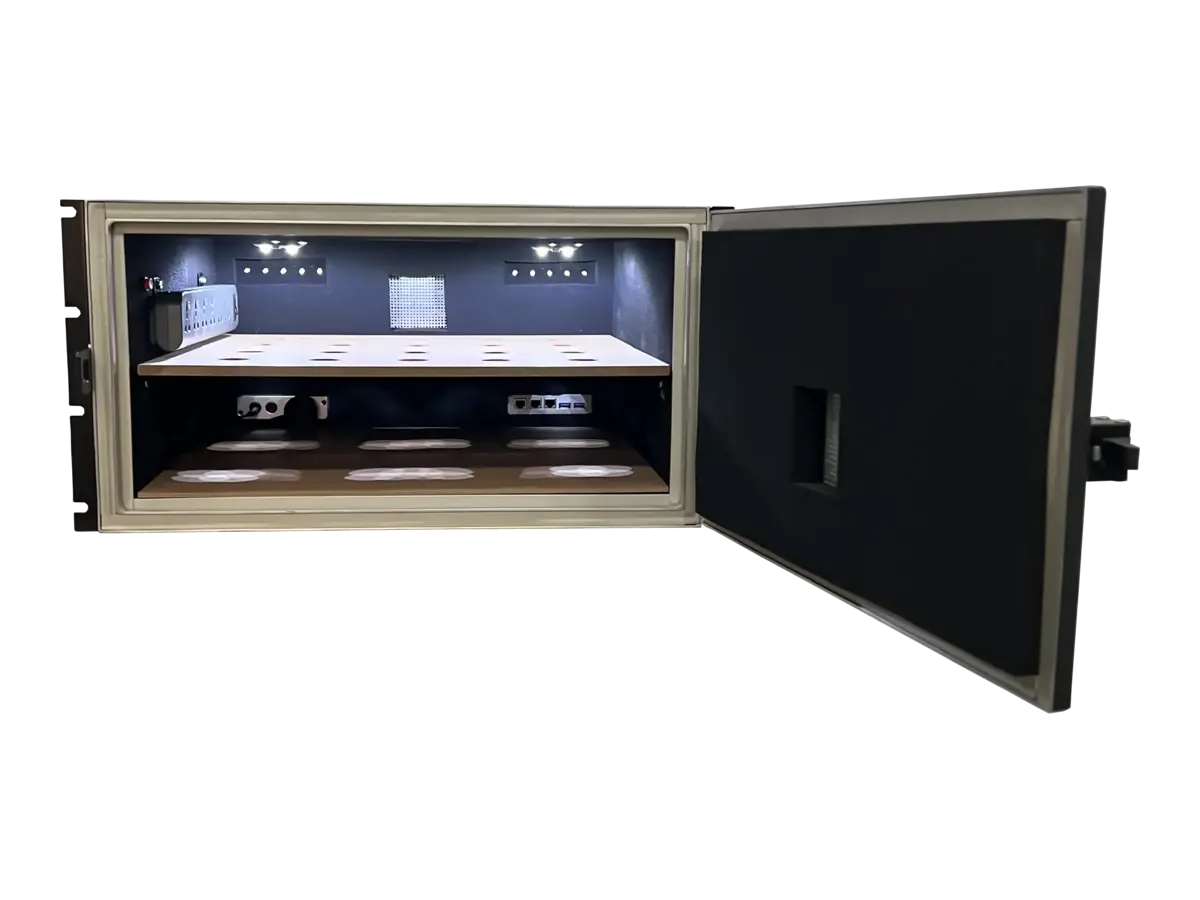

| RF Absorber Type | High-Density Pyramidal Microwave Foam Absorber Matrix (Reflection Loss > 20 dB) |
| Total Weight | Approx. 28 kg (61.7 lbs) |
| Target Applications | 5G NR, Wi-Fi 6E/7, Bluetooth LE, GNSS, IoT Module QA & OTA Testing |
Frequency Attenuation & Shielding Effectiveness Matrix
| Frequency Band | Shielding Attenuation (dB) | Test Condition / Standard |
|---|---|---|
| 20 MHz - 1 GHz | > 85 dB | Labifix Calibrated Measurement |
| 1 GHz - 3 GHz | > 95 dB | Labifix Calibrated Measurement |
| 3 GHz - 6 GHz | > 90 dB | Labifix Calibrated Measurement |
| 6 GHz - 12 GHz | > 85 dB | Labifix Calibrated Measurement |
